36150
Manufacturer:
TE Connectivity
Mfr.Part #:
36150
Datasheet:
Description:

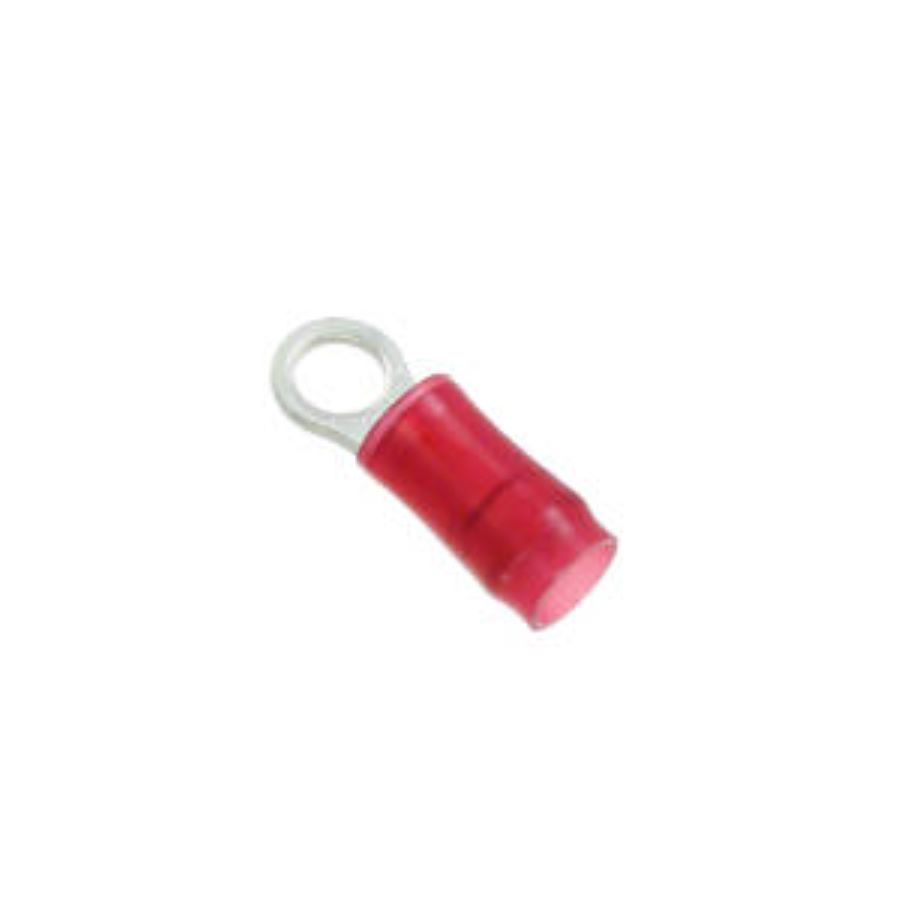

Terminals Stud 16 AWG Female
| Parameter | Value |
|---|---|
| Length | 17.07 mm |
| Termination | Circular |
| Max Operating Temperature | 105 °C |
| Voltage Rating (AC) | 300 V |
| Material | Copper |
| Packaging | Bulk |
| Depth | 5.54 mm |
| Thickness | 787.4 µm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Type | Ring |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Red |
| Gender | Female |
| Body Material | Copper |
| Tab Width | 5.54 mm |
| Wire/Cable Diameter | 3.56 mm |
| Wire/Cable Gauge | 16 AWG |
| Insulation | Insulated |
| Thread Size | M3.5 |
| Insulation Material | Nylon |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 22 AWG |
| Inside Diameter | 3.68 mm |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.56 mm |
| Body Plating | Tin |
| Plating Thickness | 2.54 µm |
| Insulated Wire Support | Yes |
| Tab Length | 17.07 mm |
| Tab Thickness | 0.79 mm |
| Material Thickness | 840 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Diameter | 3.68 mm |
| Heavy Duty | No |
| Number of Holes | 1 |
| Stud Size | M3.5 |
| Tongue Thickness | 840 µm |
| Government Qualified | Yes |
Stock: 4007
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.24793 | $2.47930 |
| 25 | $0.20006 | $5.00150 |
| 50 | $0.19530 | $9.76500 |
| 100 | $0.19065 | $19.06500 |
| 300 | $0.18293 | $54.87900 |
| 500 | $0.17552 | $87.76000 |
| 1000 | $0.16842 | $168.42000 |
| 3000 | $0.16414 | $492.42000 |
